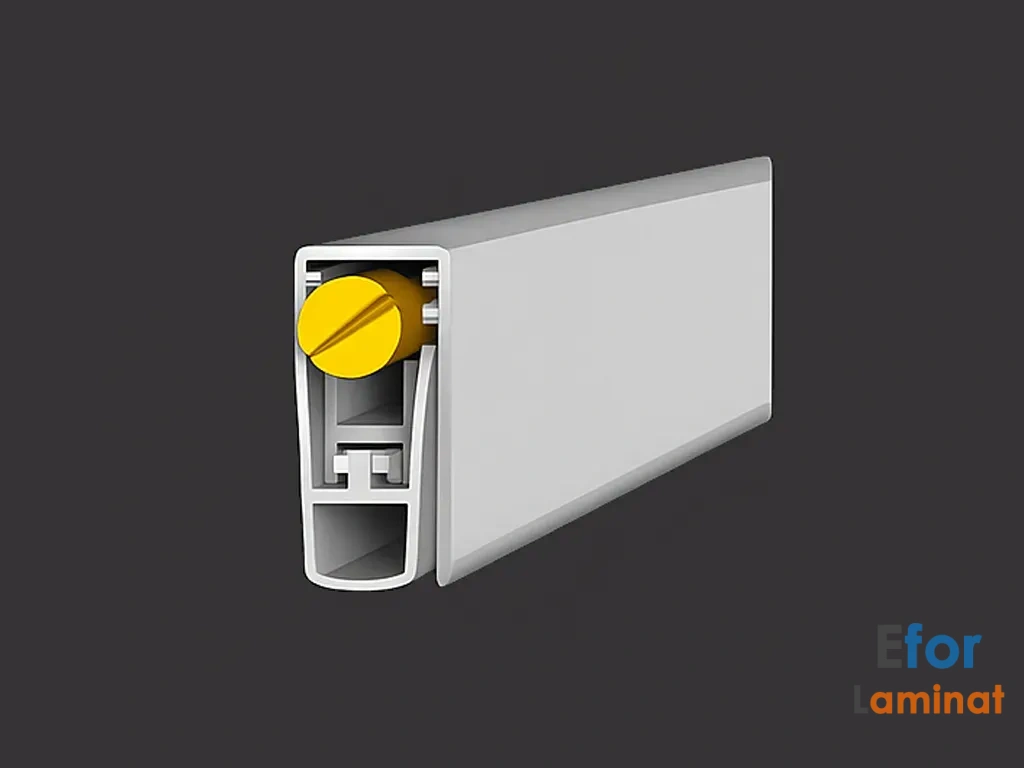

Td600 Fire-Rated Concealed Guillotine, KK-TD600

Td600 Fire-Rated Concealed Guillotine is a specialized under-door system that provides professional solutions for interior doors requiring high-performance sound and smoke insulation. It is particularly ideal for fire and smoke control doors, acoustic studios, office partitions, and soundproof hotel rooms.

This model effectively prevents the passage of air, sound, and smoke from below the door while preserving the door's aesthetics, thanks to its hidden (concealed) flat installation design. The screw-mounted installation feature allows for a practical and sturdy setup.

Technical Specifications

• Type: Flat type, concealed under-door guillotine
• Compatibility: Compatible with wooden, metal, and composite door systems
• Insulation Performance: High acoustic efficiency with a 48 dB sound insulation rating
• Fire Resistance: Fire resistance compliant with TS EN 1634-1 standard
• Smoke Control: Designed for use in fire and smoke control doors

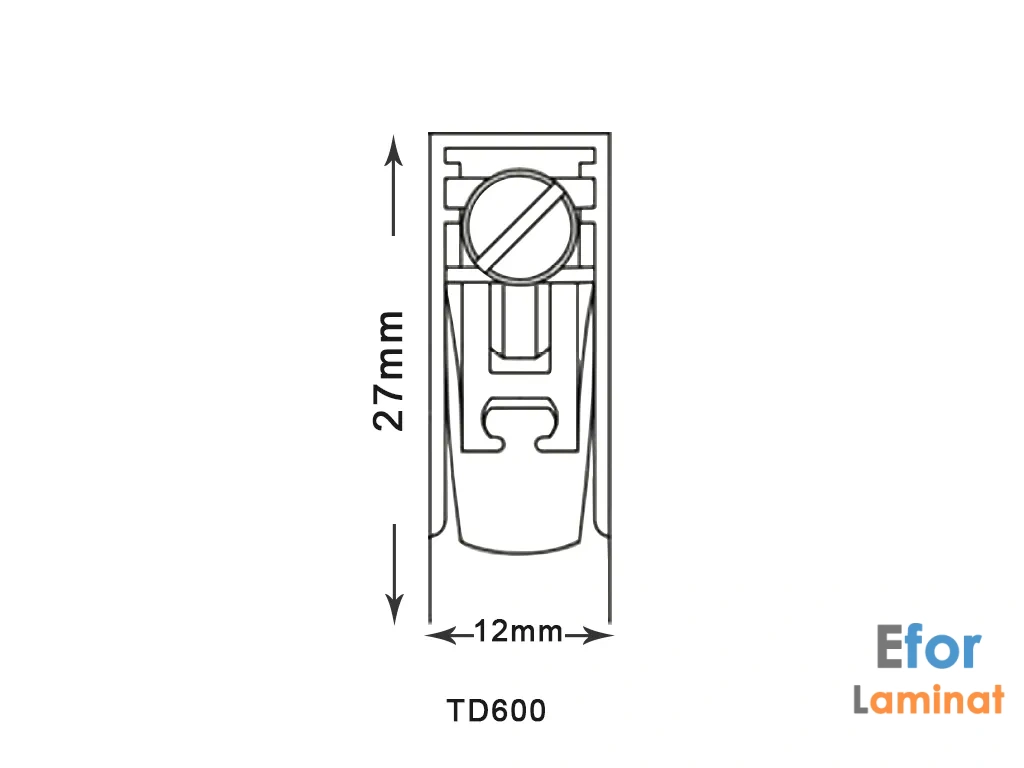

• Pressing Height: 12 mm, adjustable mechanism for maximum insulation
• Cuttable Length: Can be shortened up to 200 mm
• Length Options: Available in 800 mm, 1000 mm, 1200 mm, and 1300 mm
• Fasteners: Not included in the set (optional add-on)

Surface and Color Options

Standardly available in natural aluminum (AN) finish. Additionally, it can be produced in RAL colors or custom coatings upon request, allowing it to easily adapt to both modern and industrial interior designs.

Quality and Certification

The Td600 model meets durability and safety standards with TS EN 1670 and TS EN 1634-1 certifications. This ensures long-lasting use, high corrosion resistance, and fire safety.

Applications

• Hospital, hotel, and school doors
• Fire-resistant interior doors
• Soundproof acoustic rooms
• Offices and meeting rooms

Td600 Fire-Rated Concealed Guillotine is a professional insulation solution that meets both aesthetic appearance and high technical performance expectations. With its durable structure, adjustable mechanism, and fire-rated design, it provides maximum efficiency for your door systems.
